Linkages
Our AG tilting mechanisms allow the bucket to be hydraulically tipped for self loading.

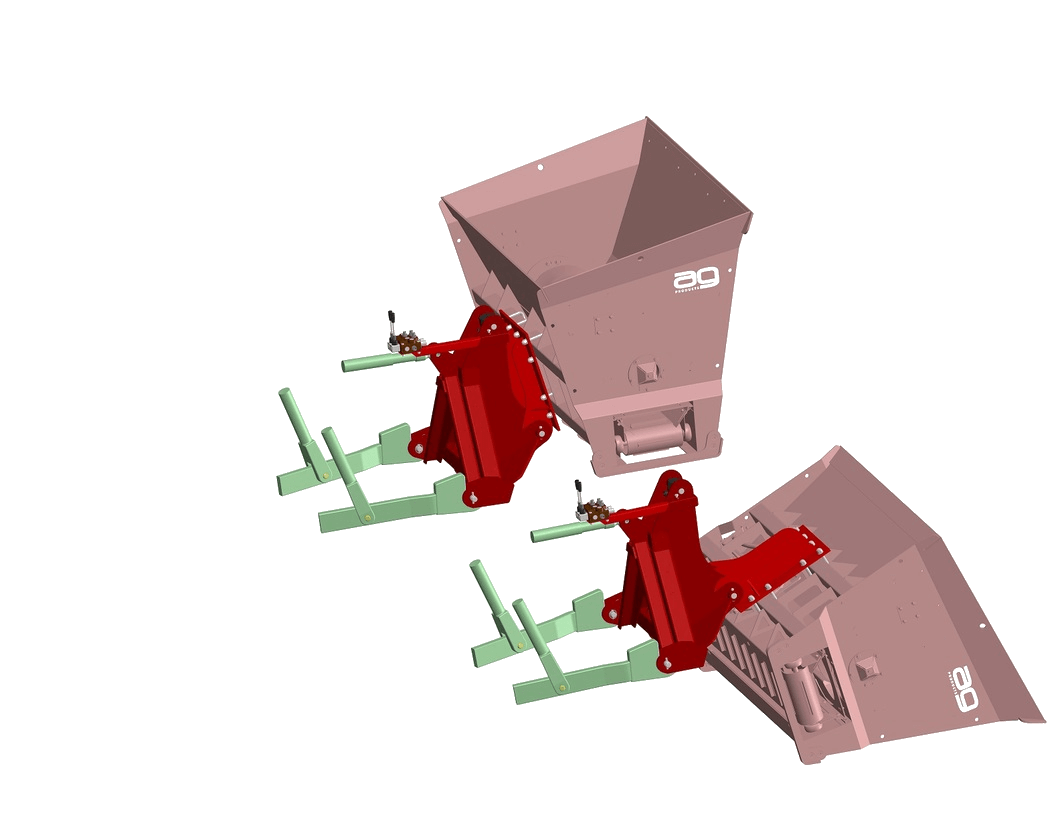

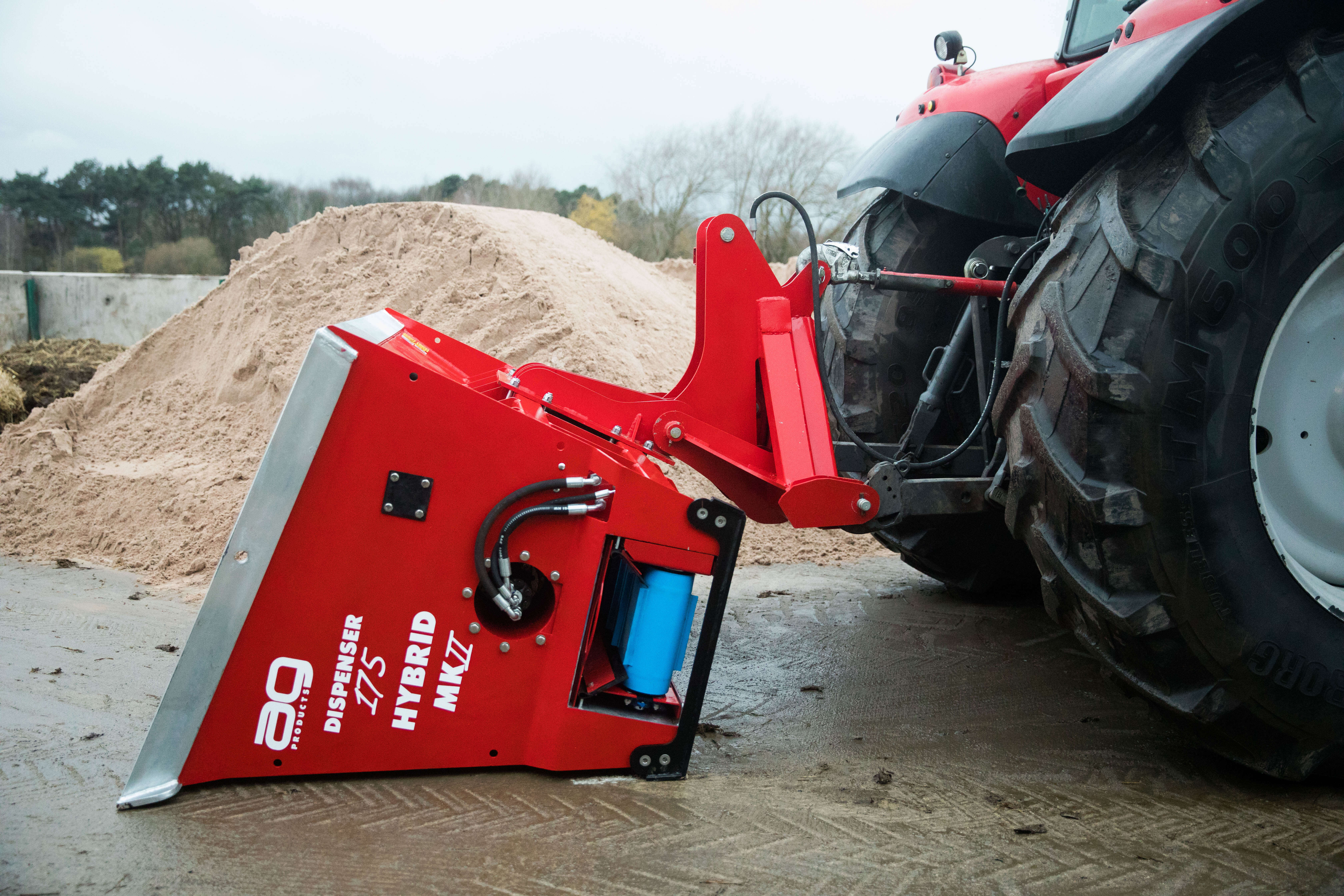

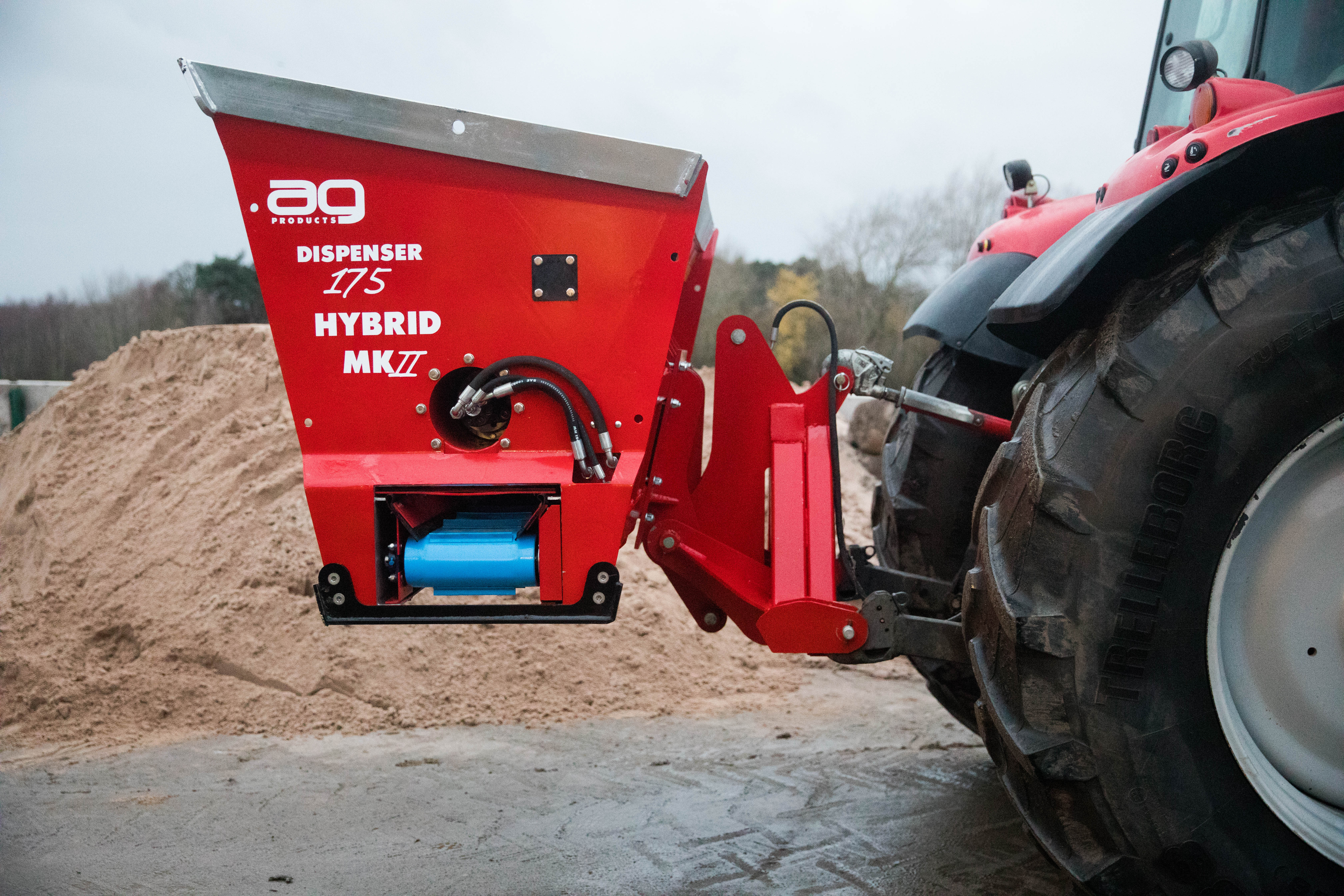

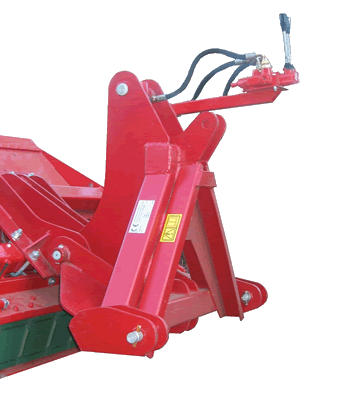

AG 3 Point Tilting Mechanism
- The AG 3 Point Tilting Mechanism has an integrated “A” frame that speeds up the changing of machines from one tractor to another.
- The frame also uses an added hydraulic ram for the self loading mechanism, this does away with Hydraulic toplink.
- This tilting mechanism requires 2 double acting spools.
- An additional Spool block assemble can be added for those tractors that only have 1 oil service available
![](https://ag-products.co.uk/wp-content/uploads/2019/01/3-point-tilt-with-valve-tr-1.png)
![](https://ag-products.co.uk/wp-content/uploads/2019/01/2S4A6522_original.jpg)
![](https://ag-products.co.uk/wp-content/uploads/2019/01/2S4A6451_original.jpg)

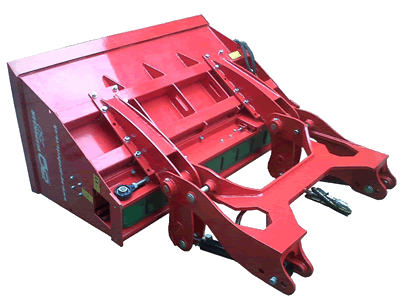

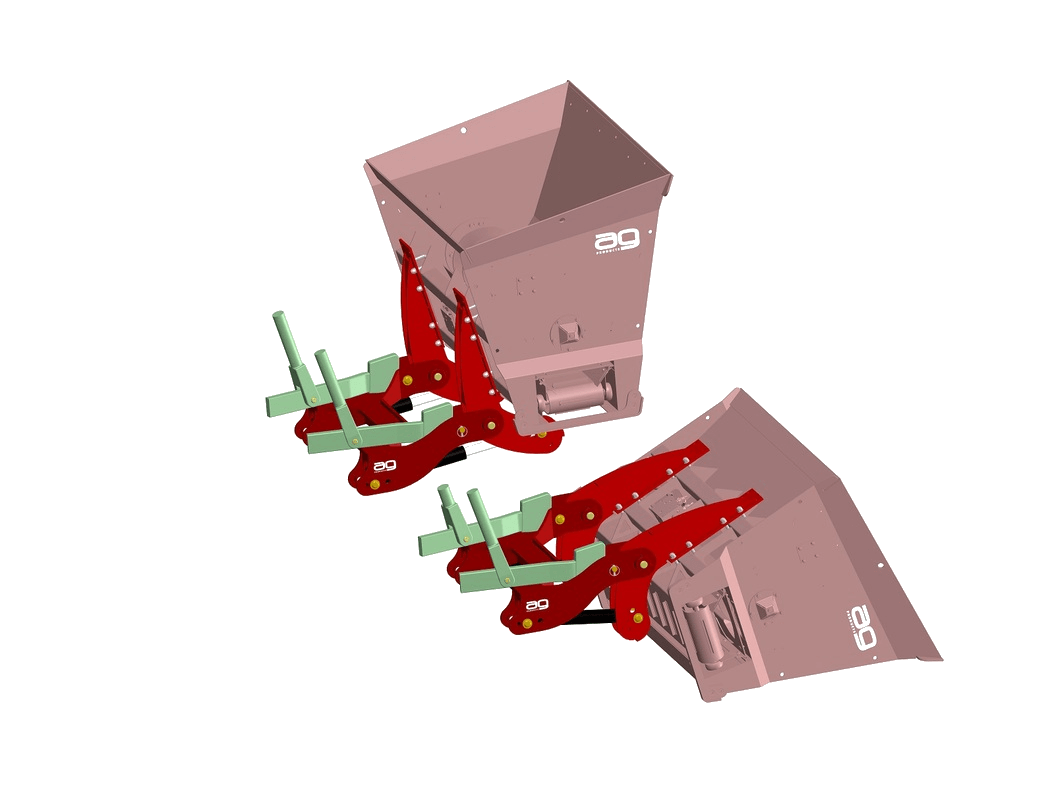

AG 2 Point Tilting Mechanisms
- Like it’s 3 point counterpart the AG 2 Point Tilting Mechanism offers an increased lift capacity, but does offer some different benefits.
- Sits in closer to the tractor, which allows for increased weight without disrupting the tractors balance.
- Heavier Duty build.
- Greater lift capacity.
![](https://ag-products.co.uk/wp-content/uploads/2019/01/2-point-tilt-tr.png)
![](https://ag-products.co.uk/wp-content/uploads/2019/01/2S4A6385_original.jpg)
![](https://ag-products.co.uk/wp-content/uploads/2019/01/2S4A6443_original.jpg)
